SOBA SEMINEU TEOREMA 3.0-10.0 kW

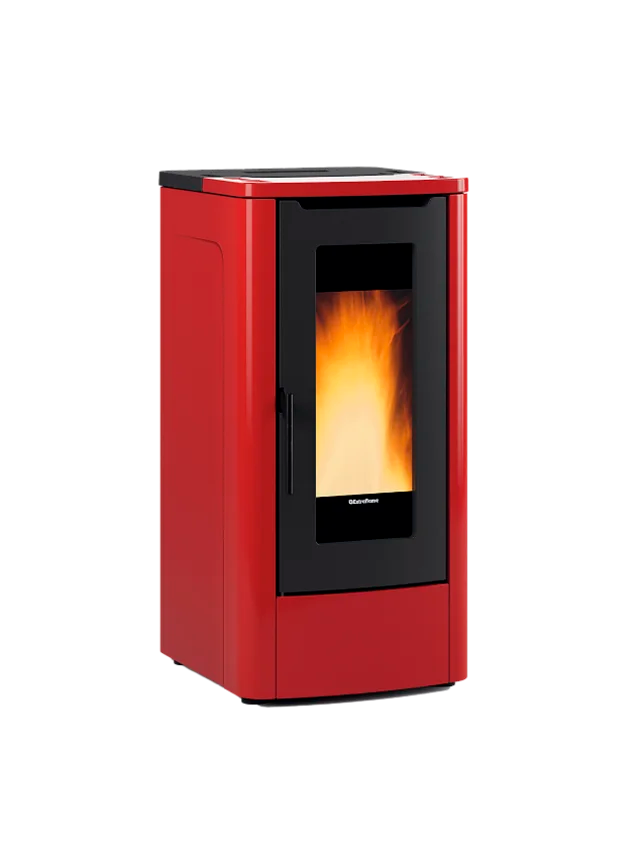

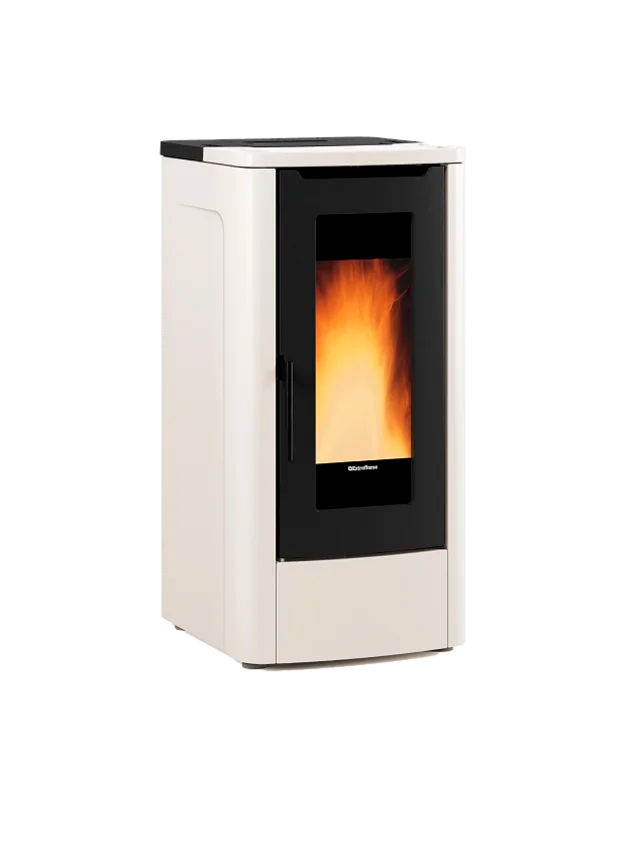

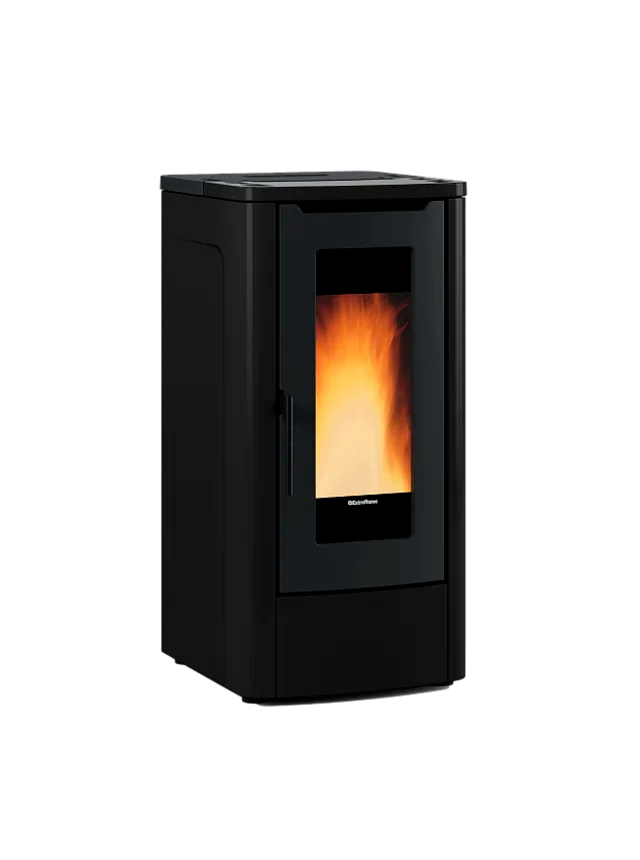

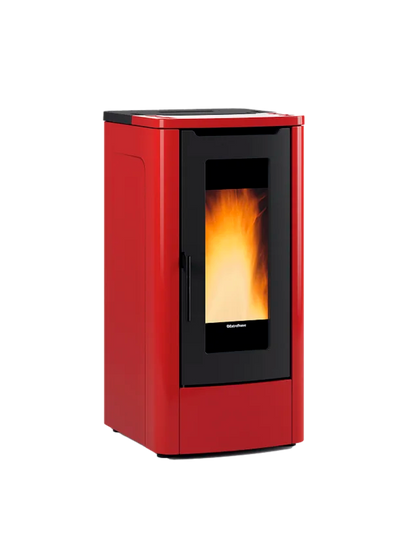

Versatile in installation, it offers the possibility of an upper or rear flue outlet. The modern design and steel and majolica finishes (bordeaux, ivory, black) make it suitable for any environment. Large 27 kg tank, ash compartment for easy cleaning and dual motor for silent ventilation.

•

  Glass cleaning system

  A system of pre-heated air which removes any deposit from the fire-door glass.

•

  Removable brazier for easy cleaning

  The burn pot’s system of construction allows easy extraction for quick and complete cleaning.

•

  Auto-adjustment of the fumes extractor (encoder)

  It keeps the RPM of the fumes motor constant, to ensure correct combustion of the product.

•

  Hopper safety thermostat

  Ensure always high safety standard, preventing the overheting of the product in case of anomaly.

•

  1st and 2nd air auto-balancing

  Primary and secondary air electronically balanced for an optimal combustion and thermal efficency.

•

  Outdoor temperature thermostat input

  The product interfaces with room temperature control devices (thermostat or contacts) to achieve the selected temperature in every room.

•

  Flue pipe safety pressure switch

  Checks the correct evacuation of the fumes and, in case of need, locks the loading of pellets, to avoid problems on the generator.

•

  Chrono-thermostat

  Chronothermostat provided with temperature control divided in four daily slots for an optimal rooms management.

•

  Auto-relighting after black-out

  Following a black out the appliance automatically re-starts after having carried out the scheduled auto-control.

•

  Room temp. thermostat

  The room probe optimizes comfort and lowers noticeably the consumption.

•

  Clean combustion

  Increases the combustion efficency and the duration of parts subject to wear duration reducing at the same time the ordinary brazier cleaning.

•

  Doors in cast iron

  The high-quality cast-iron doors are made to last and ensure perfect sealing at all times.



  Technical data

  Technical specifications

  • Dimensions (WxHxD)525x1080x652 mm
  • Hourly consumption0.7 - 2.3 kg/h
  • Total tank capacity~ 30 kg
  • Fumes outlet diameter (Ø)80 mm B/T
  • Efficiency90.2 - 91 %
  • Net Weight165 kg
  • Energy ClassA+
  • Nominal thermal power3 - 10 kW
  • Heatable m³287 m³ (*)

  (*) - The data is indicative and refers to the need of 30 kcal/h x m³.
